Description

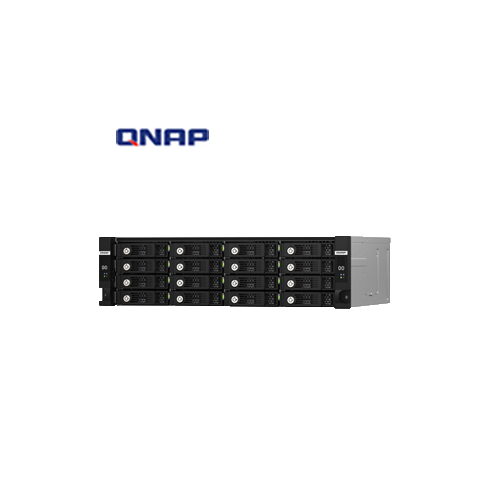

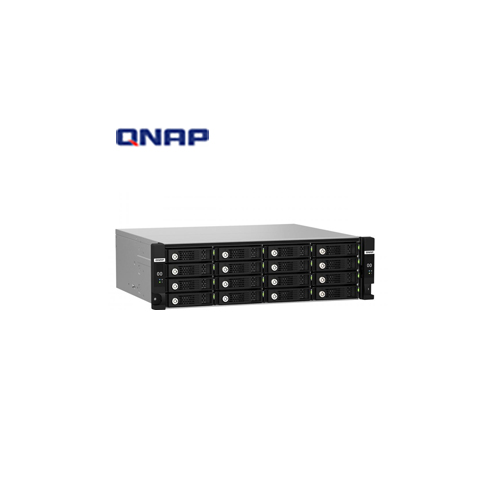

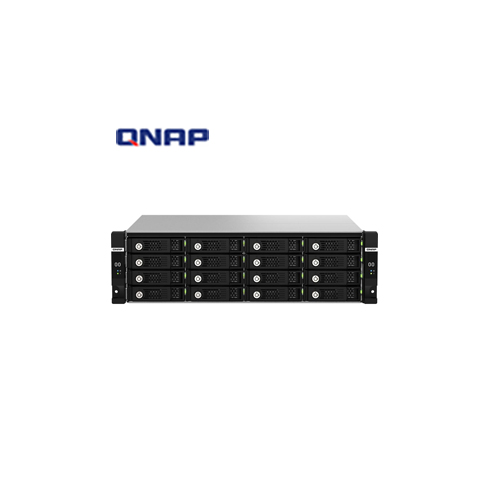

TL-R1620Sdc
Drive Bay : 16 x 3.5-inch SAS 12Gb/s, 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility : 3.5-inch bays:
3.5-inch SAS hard disk drives
2.5-inch SAS hard disk drives
2.5-inch SAS solid state drives
Hot-swappable :
Gigabit Ethernet Port (RJ45) : 1
For console access and CLI.
Form Factor : 3U Rackmount
Host Interface : 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
LED Indicators : HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
Buttons : Power, OLED
Dimensions (HxWxD) : 131.3 × 482.2 × 425.3 mm
Weight (Net) : 12.26 kg
Weight (Gross) : 18.04 kg
Max. number of HDDs/SSDs supported : 16
Hard Drive Type : 3.5″ or 2.5″ SAS12Gb/s 6Gb/s drives
Operating Temperature : 0 – 40 °C (32°F – 104°F)
Storage Temperature : -20 – 70°C (-4°F – 158°F)
Relative Humidity : 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit : 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical : 212.24 W
Tested with drives fully populated.
Fan : 3 x 80mm, 12VDC
System Warning : Buzzer
Management : Managed via NAS QES OS and JBOD Manager for Windows
